bouwjaar 2013 uren 4505
Size(L×W×H 4220×1400×2400mm
Outline dimension
A）Wheel-base 1430mm
B）Crawler length 1860mm
C）Ground clearance of platform 550mm
D）Tail slewing radius of platform 1050mm
E）Chassis width 1400mm
F）Crawler width 250mm
G）Ground clearance of chassis 280mm
H）Crawler height 475mm
I） Shipping length 4220mm
J） Shipping height 2400mm
K） Shipping width 1400mm
Operating range
a）Max. digging height 4020mm
b）Max. dumping height 2815mm
c）Max. digging depth 2375mm
d）Max. vertical digging depth1535mm
e）Max. digging radius 4465mm
f） Max. digging reach at ground level 4320mm
g）Max. lifting height of bulldozer blade 270mm
h）Max. digging depth of bulldozer blad 310mm
I） Min. slewing radius 2055mm
Bulldozer blade（Length×Width）1400×325mm
Performance parameters
Operating weight（rubber track）2.58t
Standard bucket capacity 0.066m³
Bucket digging force 25kN
Bucket rod digging force14.47kN
Traveling speed 4.1/2.7km/h
Ground pressure 36kPa
Swing speed 9rpm
Engine Brand Yanmar
Power 14.6kW/2200rpm
Displacement 1.267L
Oil tank capacity
Diesel 42.5L
Hydraulic oil 30L
Prijs 15000 € ex btw

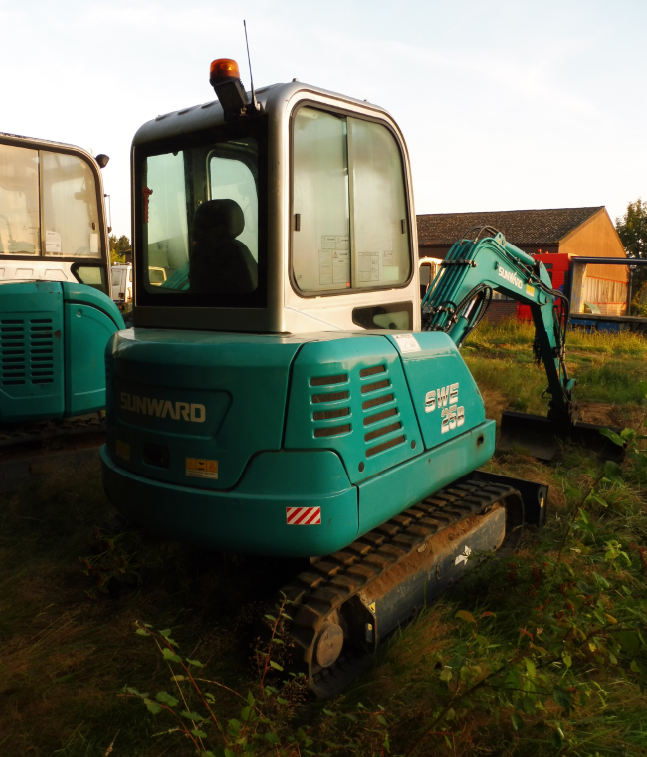

Sunward SWE25B
Service voor verkoop
Toestel is nagekeken en heeft indien nodig onderhoud gehad op volgende punten :
- Hydraulisch gedeelte, olie, filter en dichtingen.
- Motorisch gedeelte, motor, filters en olie.
- Hydraulische pompen
- Luchtfilter
- Staat van de Batterij
- Rupsenspanning
- Tandwwielen
- Verlichting
